  • Fully auto PLC base Alkaline Degreasing Facility & Zinc Phosphating Facility
  • Shot blasting Machine with SS Shot
  • Fully Auto with servo control Dip Spin Coating Plant
  • Conveyorized Baking Oven
  • Spray Booth
  • Tumbler Type Shot Blasting Machine With SS Shots
  • Paint Preparation / Testing Setup
  • Semi Auto Dip / Spin Unit
  • Availability Of Spray System
  • Batch Oven
  • Coating Testing Lab Setup

Dip Spin

Dip Spin

Baking Oven

Baking Oven

Shot Blasting Machine with SS Shot

Shot Blasting Machine with SS Shot

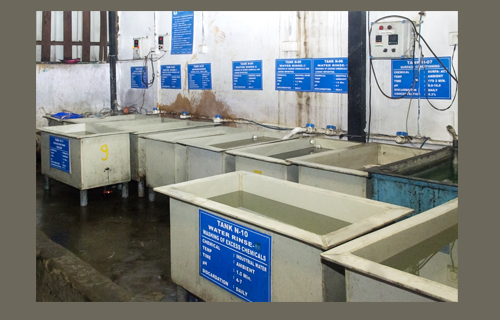

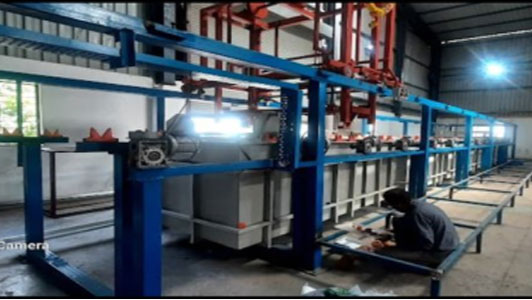

Fully auto PLC base Alkaline Degreasing & Zinc Phosphating Facility

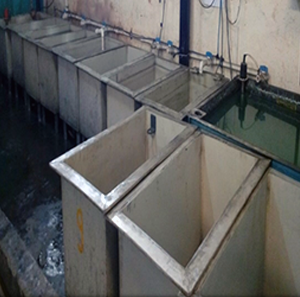

Semi Automatic Degreasing / Phosphating Line

Details

  • Temperature indicators / controllers, Timer / alarms Rotating Barrels for degreasing / phosphating components.
  • 70 – 100 kg Barrel Capacity
  • Fully programable PLC base line

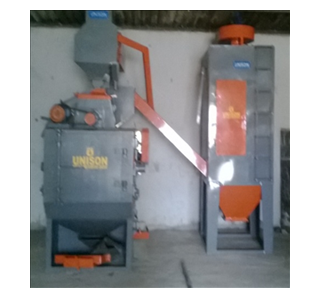

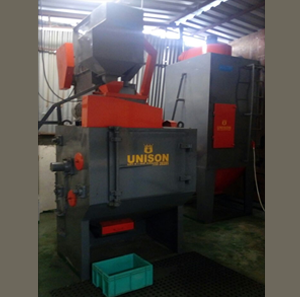

Shot Blasting

Shot Blasting

Details

  • Component loading one time Capacity 300 kg. Max.
  • Blasting time min 10 & Max 15 Min.
  • Use of stainless steel shots for better cleanliness of components.
  • Auto time control with Buzzer.
  • Current Interlock

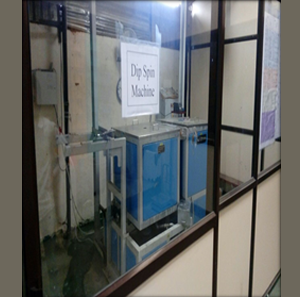

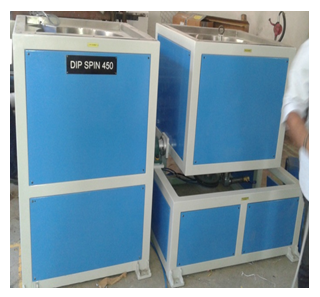

Semi Auto Dip / Spin Unit

Semi Auto Dip / Spin Unit

Details

  • Semi Auto Control Spinning Speed Min 250 & Max 450 RPM
  • Coating Capacity 3 Mt / 24 Hrs.
  • Automatic Control With Dedicated Programs For Different Parts.
  • Tilting Facility For Socket Head Fasteners.

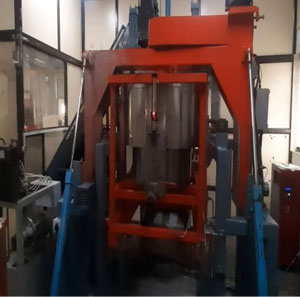

Fully Auto Dip Spin Unit

Semi Auto Dip / Spin Unit

Details

  • Fully Auto Control Spinning Speed Min 250 & Max 500 RPM
  • Coating Capacity 5 Mt / 24 Hrs
  • Automatic Control With Dedicated Programs For Different Parts.
  • 60 Degre Tilting Facility For Socket Head Fasteners.
  • Servo RPM control
  • Automatic loading system with auto weight Loder
  • Fully safety related interlocks.
  • Fully controlled by Temperature & Humidity level

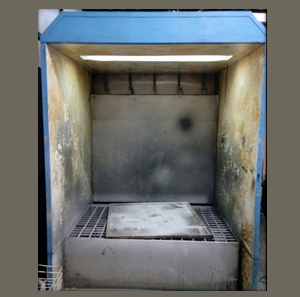

Sprey Booth

Sprey Booth

Details

  • Availability of spray system for parts requiring spray coating & closed booth with water curtain.
  • Spray booth size 6 X 6 X 6 Ft.

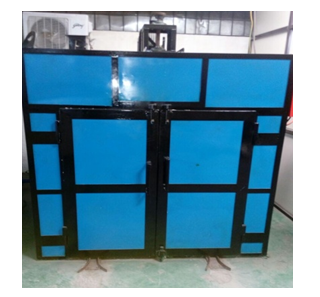

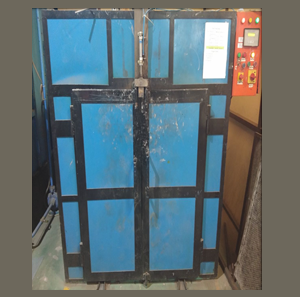

Batch Oven

Batch Oven

Details

  • Fully auto time control & door interlock system to ensure required baking time.
  • Facility for auto program for pre baking and baking.
  • Alarm for indicating completion of cycle.
  • 250 To 300 Kg one time loading capacity
  • Temp. Range 400

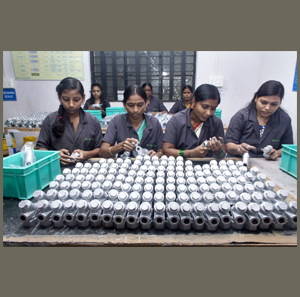

Final Inspection / Packing

Final Inspection / Packing

Details

  • Separate Inspection Area.
  • 100% Visual Inspection For Socket Head Bolts And Socket Head Checking With Allen Key/ Tool Bit.
  • Packing Standard As Par Customer Requirement

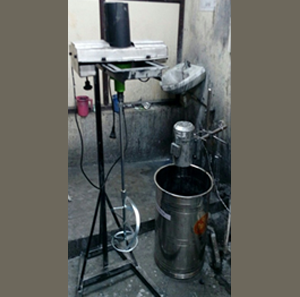

Paint Preparation / Testing Setup

Final Inspection / Packing

Details

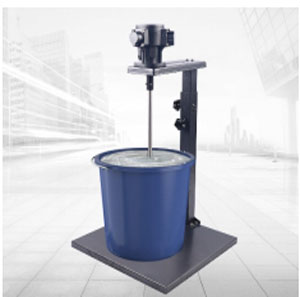

  • Paint wise Separate paint mixing stirrers
  • RMP controller
  • Fully temperature & Humidity controlled Room

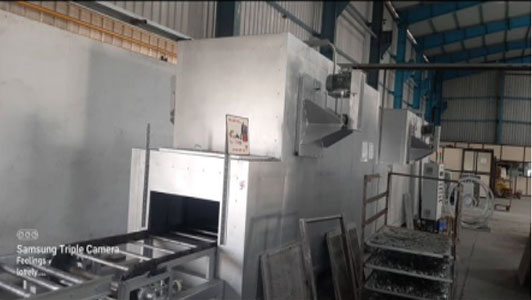

Automatic conveyer Baking oven

Batch Oven

Details

  • Septate Baking zone like pre Heating – Main heating – Cooling
  • Low – High Temperature interlock
  • Low – High temperature indicator & Buzzer
  • Burner safety related programable

ETP Plant

ETP Plant

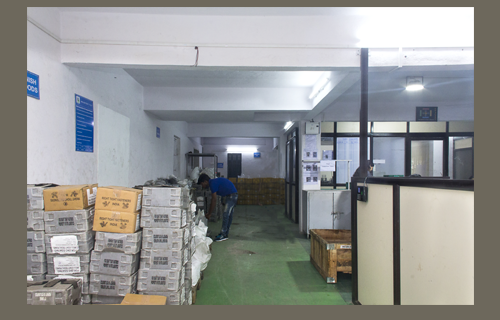

Coated Parts Store Area

Coated Parts Store Area

Safety Material Handling

Safety Material Handling

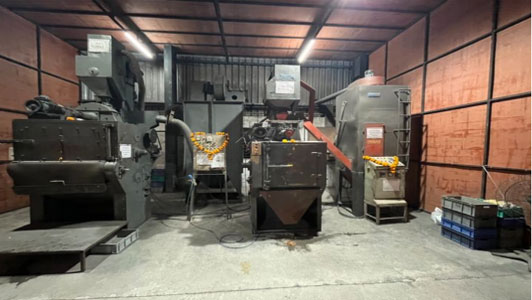

Shot Blasting Machines

Shot Blasting Machines

WIP Parts

WIP Parts

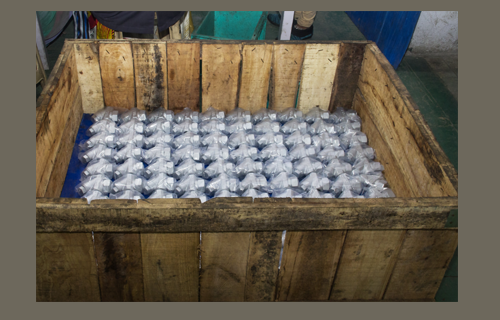

Out Material Store

Out Material Store
